特点:本系列机型是专为缝制大型厚重物品研发的厚料机型。产品分为双针、单针左缝合（L）、单针右缝合（N）三款。长臂立柱式，综合送料，大型立式摆梭，大功率私服电动驱动。送料强劲稳健，线迹平整美观，操作空间宽敞，多层厚重物料也能轻松缝纫。配置气动式抬压脚装置，压脚行程大，气动倒缝装置，操作便捷轻松，高性能私服控制系统能方便地选择和设置多种缝纫模式。特别适用于缝制沙发家私、帐篷、风帆、伞具、汽车罩、防护罩、伪装网及类似大型厚重物品。厚重物品。

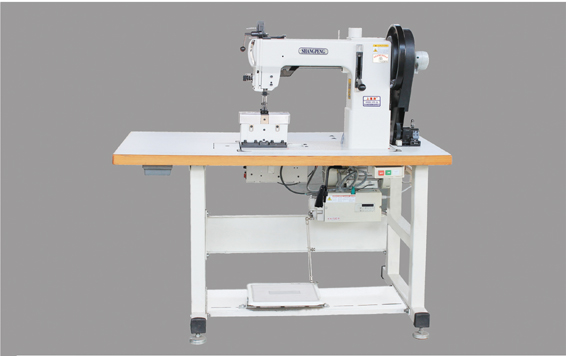

Characteristics:This series is a kind of sewing machine for thick materials,which is designed for large-scale and extra-thick objects especially.The products are divided into three of sewing machines including double-needle,single-needle left-side stitching bed (L)and single-needle right-side stitching bed (N).The sewing machine,driven by large power servomotor,adopts long-arm post-bed type and comprehensive feeding with large vertical shuttle hook.it possesses the following advantages:stable and strong feeding,smooth and nice stitch,wide operating space and easy sewing for multilayer extra-thick materials.it is also equipped with pneumatic presser lifting device with large presser stroke and pneumatic back stitch equipment with convenient and easy operation.At the same time,high-performance servo control system can select and set various sewing modes convently.This kind of sewing machine is especially applicable for large-scale and extra-thick machine such as tent,sails,umbrella,covers for automobile,protective cover,camouflage net and so on.
主要技术参数Main Parameters:
型号 Model |
GA204-370-2L |
缝速高达 Max.Sewing speed |
400 s.p.m |
线迹长度 Stitch length |
0-12毫米 mm |
针杆行程 Needle bar stroke |
56毫米 mm |
挑线杆行程 Thread take-up lever stroke |
96毫米 mm |
压脚提升 Presser food lift |
气动22mm Pneumatic 22mm |
机针 Needle size |
DD×3 27# |
针间距 Needle gauge |
7.94-18mm |
摆梭 Rotating hook |
KRP-204N |
缝台高度 Height of sewing bed |
140mm |
润滑方式 Lubrication |
手工润滑 Manual |
操作空间 Working place |
320×340mm |
